System Architecture

PixelCore’s inherent architecture includes software system components. These components are software entities that are executed somewhere in the system environment and offer a specific set of services through well-defined interfaces.

The software system components, described in more details in latter parts of this document, are the following:

  1. PIxelCore core component
  2. Pixel LNS
  3. Bridges
  4. Device Drivers
  5. Business Logic Dispatcher
  6. Media Server

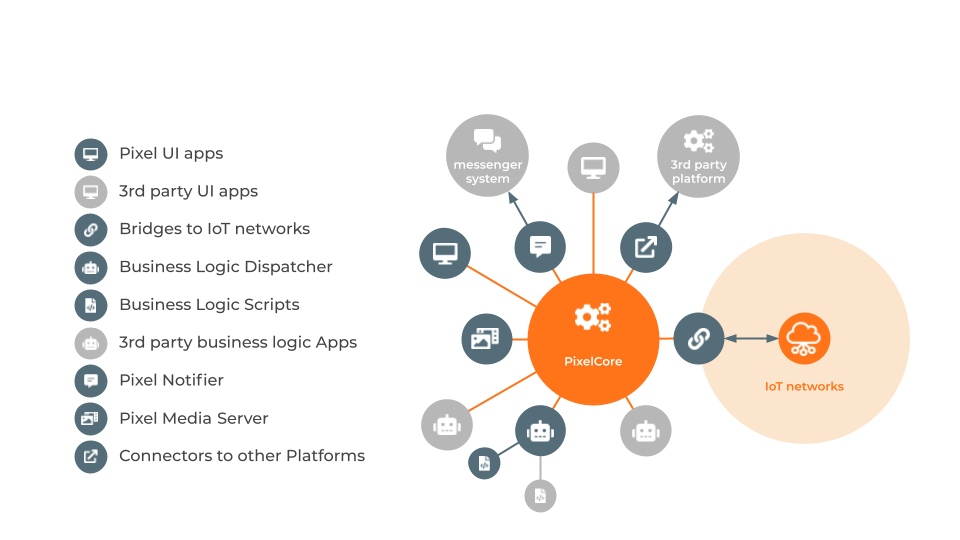

The high-level system architecture is depicted in Figure

High-Level Architecture
